Description

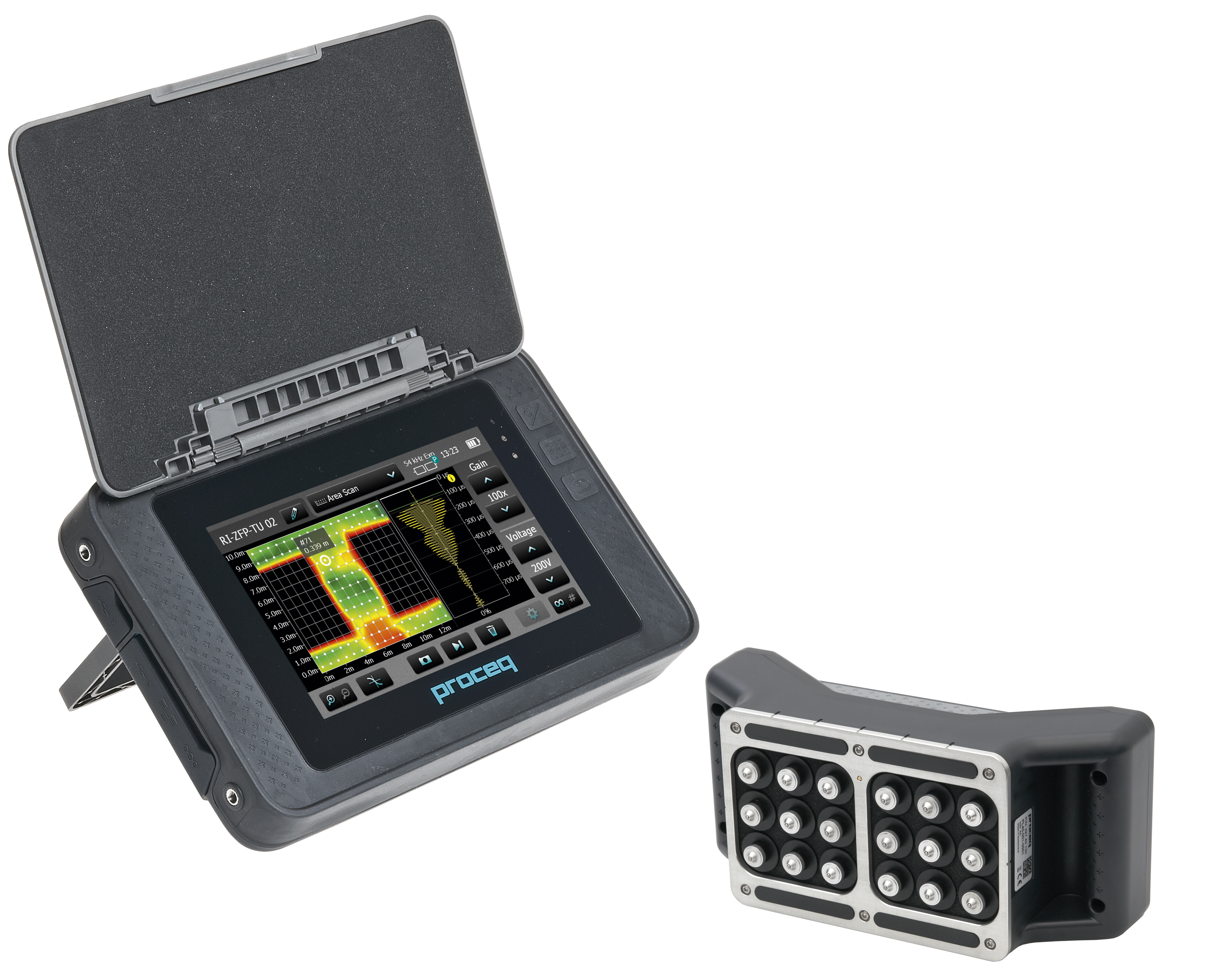

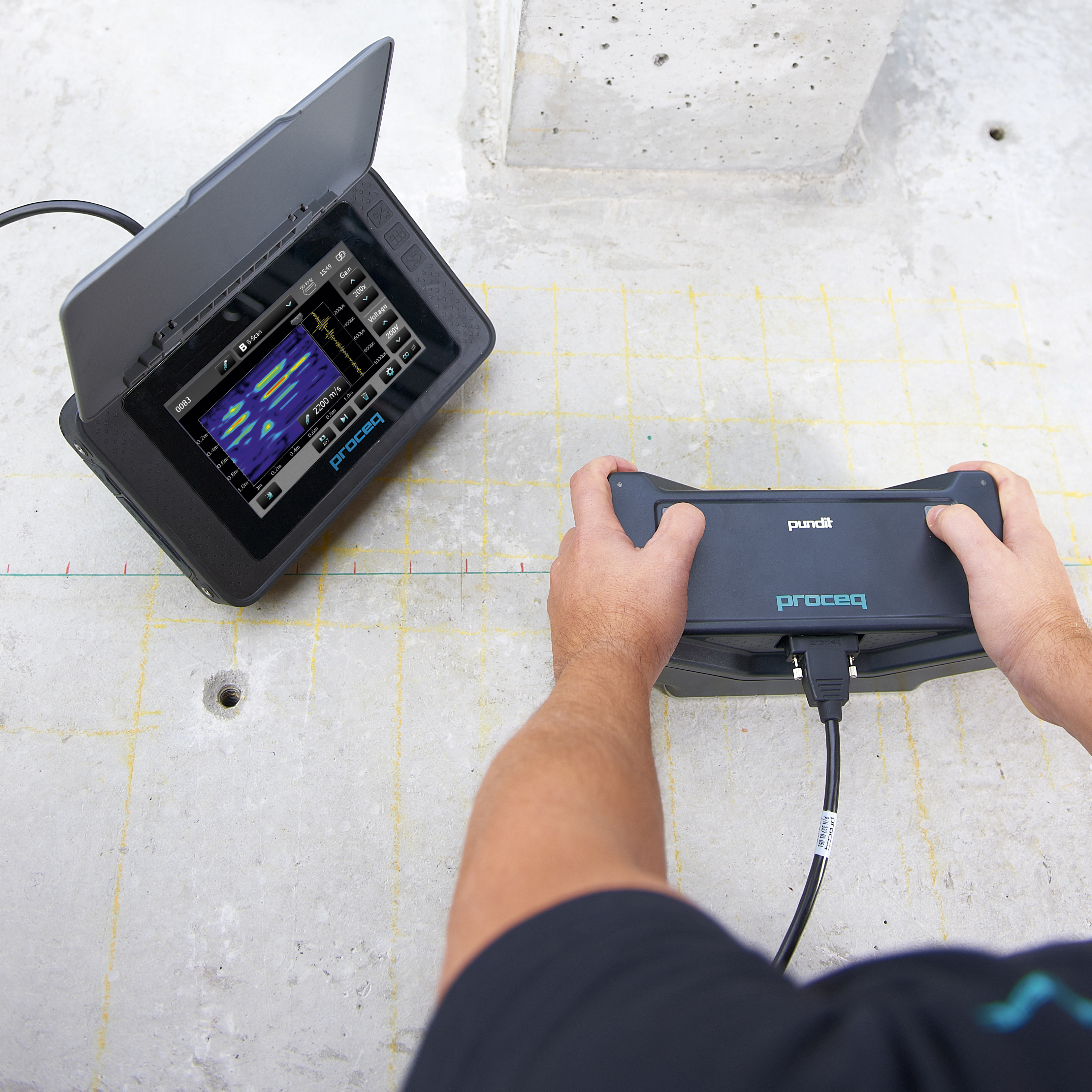

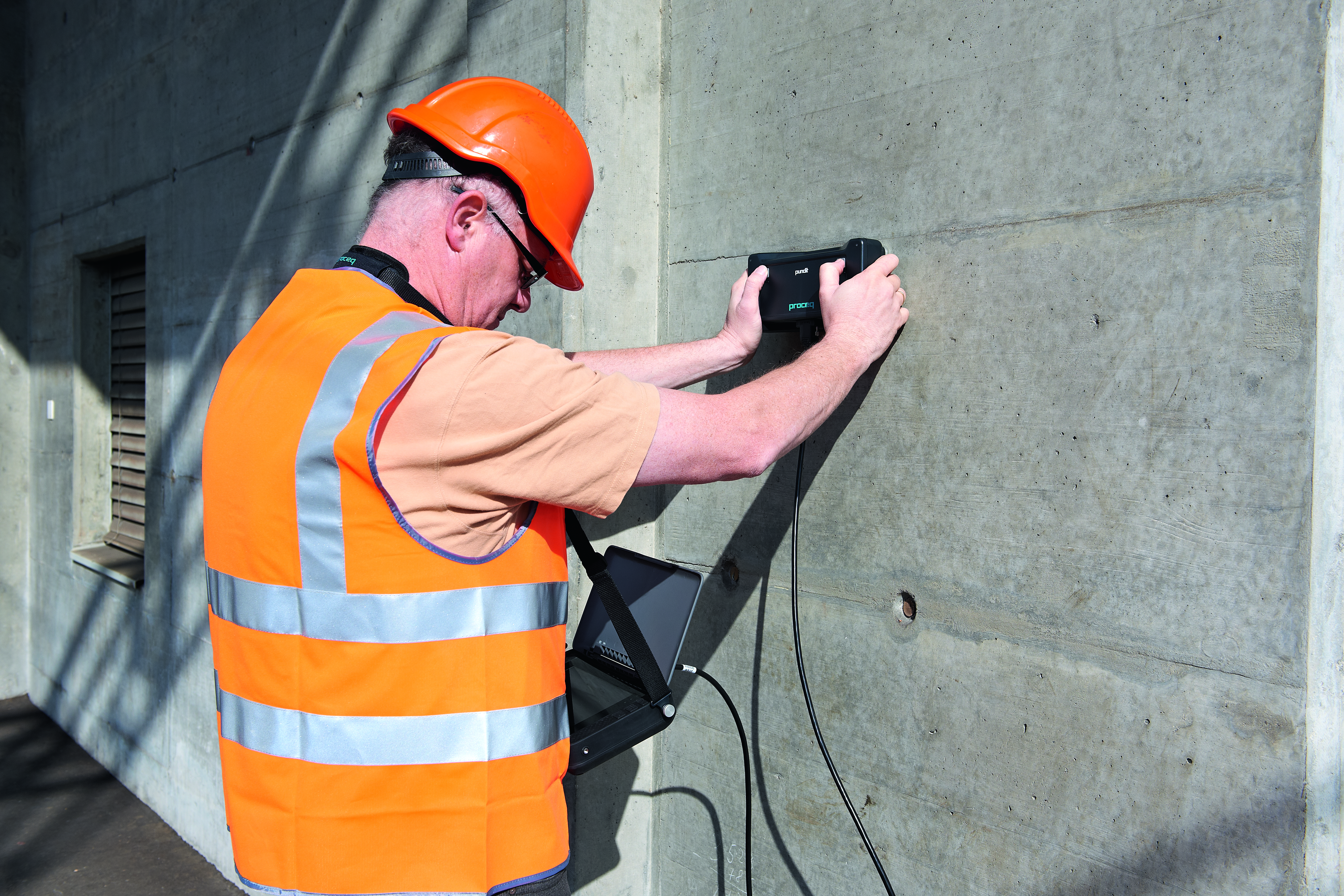

The Proceq Pundit 200 Pulse Echo extends the ultrasonic application to objects where access is restricted to a single side. Major applications are slab thickness measurements and the location of voids and delaminations. Rugged touchscreen with intuitive user interface.
Benefits
- B-Scan is constructed directly on the instrument as the scan is carried out
- Can be upgraded to Multi Channel
- Same instrument can be used with classic pulse velocity transducers
| Bandwidth | 20 to 500 kHz |
| Technology | Single channel ultrasonic pulse echo |
| Measuring Resolution | 0.1 us |
| Pulse Voltage UPV | – |
| Pulse Voltage UPE | ± 50 to ± 200 V |
| Receiver Gain | 1 to 10’000x (0 to 80 dB) |
| Nominal Transducer Frequency | 24 – 500 kHz |
| Pulse Shape | Square Wave |
| Pulse Delay | – |
| Number of Channels | 1 |
Features
Instrument Firmware
- Gate function
- Raw data export
- Settings directly accessible on measuring screen
- Advanced echo tracking technology helps identifying the main echo
- Automatic estimation of the Pulse Velocity
PC Software
PL-Link for analysis and export data to third party applications
Display
7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor
Memory
Internal 8 GB flash memory
Connections
USB host / device and Ethernet
Measurement Modes
- ulse velocity
- Area Scan
- A-Scan
- B-Scan
- Distance
Measuring Range
Up to 1 m depending on concrete quality
Transducers
- Dry-contact Pundit Pulse Echo transducer with control buttons, optical feedback, center marker and rulers for easy B-Scan measurements
- Avaiable Proceq transducers: 54 kHz, 150 kHz, 250 kHz, 54 kHz Exponential, 500 kHz and 250 kHz Shear Wave
- Connect third party transducers up to 500 kHz with BNC connector
