Description

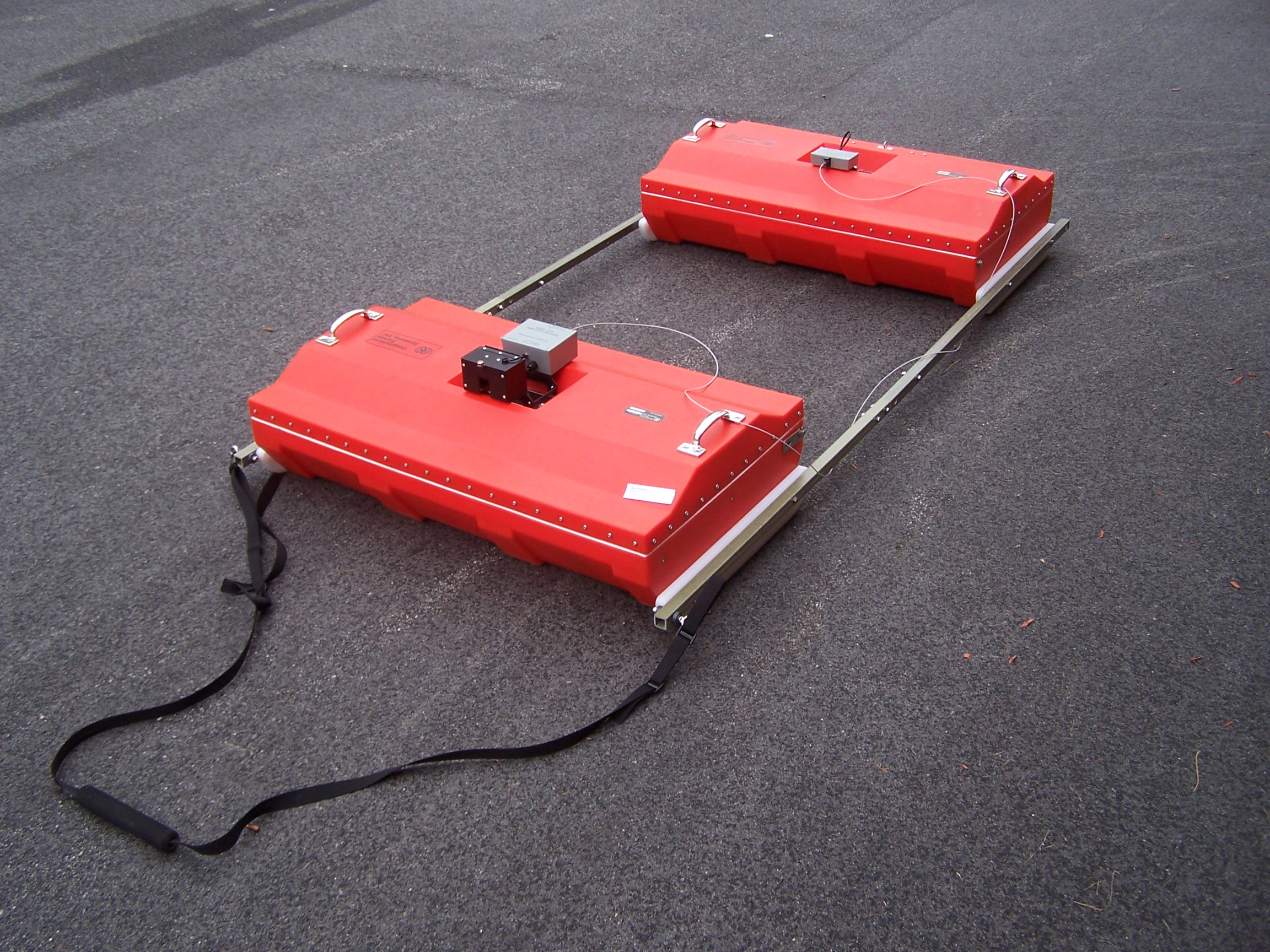

The 100 MHz antenna is used for deep subsurface applications. The 100 MHz monostatic combines the transmit and receive electronics in a single antenna housing, while the 100 MHz bistatic antenna is a versatile antenna pair that can operate in three different configurations to optimize performance. Both antennas are compatible with the SIR 4000 and SIR 30 control units.
Specifications
| Bistatic | |
| Center Frequency | 100 MHz |
| Depth Range | 0-30 m (0-100 ft) |
| Weight | 26 kg (60 lbs) |
| Dimensions | 203.1×96.5×30.5 cm (80x38x12 in) each |
| Model | 3207F |
